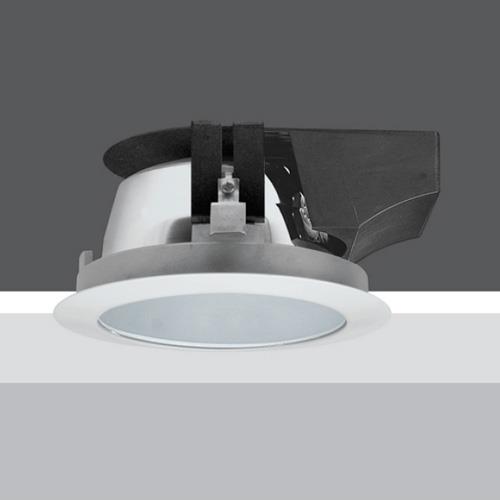

SPG 160/C


SPG 160/C

Regarded as a mysterious object, since its first discovery to today, glass has always maintained an artistic quality besides technical aspects. The use of glass in light sources is as old as its history. Developed to offer cutting edge decorative, aesthetic and efficient alternatives and to introduce glass to contemporary and modern spaces, Vega model fixtures offer the users a very rich range of choices.



Body: Body and gear boxes are manufactured with Poliamid-6 Natural containing as additives 30% glass fiber (GFR). The cables connecting the ballast box to the fixture are contained in a spiral pipe. The ballast box is equipped for hanging to the ceiling if needed.



Inner Frame: The injection aluminum zinc-coated inner frame under the fixture body carries the fixture and the mounting system. The fixture frame sits on this inner frame. The fixture is mounted on the ceiling by means of this inner frame to prevent loosening.



Frames: Fixture frame can be manufactured in a variety of colors and coatings. This frame has the ability to conceal some subtle irregularities on the suspended ceiling. The frame can be coated with 80 micron thick epoxy polyester electrostatic powder paint ome or gold. ome coating contains 8 micron copper, 8 micron nickel and 1micron ome.



Reflectors: 1 mm thick manufactured with high purity (99.9%) vacuum anodized coated aluminum.



Glass: 4 mm thick tempered glass is used for these fixtures. The glass is manufactured to accomodate the characteristics, atmosphere and decoration of the space.



Glasses are available as: C1: Transparent Glass C2: Frosted center, transparent edge C3: Frosted Glass C4: Transparent center, frosted edge



Catalogue Pages

Code Lamp Cut-Out (mm) Protection Class Weight (gr)
SPG 160/113-C1-C2-C3-C4Dulux D 1x13WØ 178 mmIP202.000 gr
SPG 160/116-C1-C2-C3-C4Dulux D 1x16WØ 178 mmIP202.000 gr
SPG 160/118-C1-C2-C3-C4Dulux D 1x18WØ 178 mmIP202.000 gr
SPG 160/213-C1-C2-C3-C4Dulux D 2x13WØ 178 mmIP202.000 gr
SPG 160/216-C1-C2-C3-C4Dulux D 2x16WØ 178 mmIP202.000 gr
SPG 160/218-C1-C2-C3-C4Dulux D 2x18WØ 178 mmIP202.000 gr
