PTL

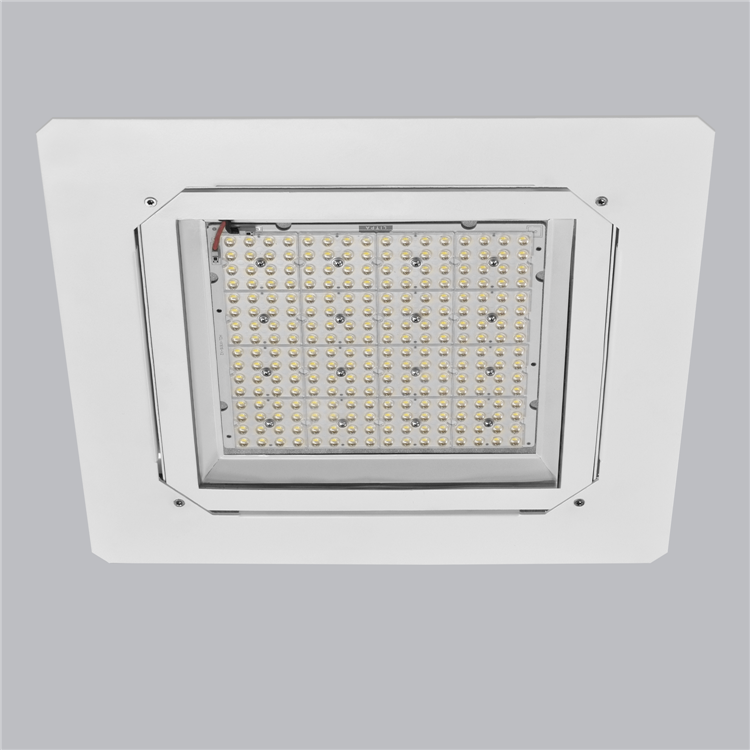

PETROLED series luminaires produced as canopy luminaires and which can be used under fringes are robust luminaires and are resistant against exterior ambient conditions with durable die-cast aluminum body. Luminaires can be produced symmetrical or asymmetrical according to requirement.

Body: Aluminum injection

Diffuser: Tempered glass

Optics: Symmetrical and asymmetrical beam

Voltage: 220V - 50 Hz

Light Data

Catalogue Pages

Code	Led	Luminous Flux (lm)	System Power (W)	Protection Class	Weight (gr)
PTL/75	Midpower	11.100	75	IP65	5.100
PTL/75/S	Midpower	10.950	75	IP65	5.200
PTL75/AS	Midpower	10.000	75	IP65	5.200
PTL100	Midpower	14.400	100	IP65	4.900
PTL100/S	Midpower	13.700	100	IP65	5.000
PTL100/AS	Midpower	12.900	100	IP65	5.000
