SPG 200/KC


SPG 200/KC

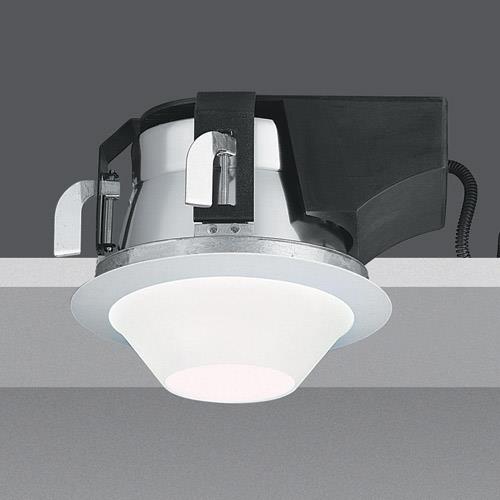

Regarded as a mysterious object, since its first discovery to today, glass has always maintained an artistic quality besides technical aspects. The use of glass in light sources is as old as its history. Developed to offer cutting edge decorative, aesthetic and efficient alternatives and to introduce glass to contemporary and modern spaces, Vega model fixtures offer the users a very rich range of choices.



Body: Body and gear boxes are manufactured with Poliamid-6 Natural containing as additives 30% glass fiber (GFR). The cables connecting the ballast box to the fixture are contained in a spiral pipe. The ballast box is equipped for hanging to the ceiling if needed.



Inner Frame: The injection aluminum zinc-coated inner frame under the fixture body carries the fixture and the mounting system. The fixture frame sits on this inner frame. The fixture is mounted on the ceiling by means of this inner frame to prevent loosening.



Frames: Fixture frame can be manufactured in a variety of colors and coatings. This frame has the ability to conceal some subtle irregularities on the suspended ceiling. The frame can be coated with 80 micron thick epoxy polyester electrostatic powder paint ome or gold. ome coating contains 8 micron copper, 8 micron nickel and 1micron ome.



Reflectors: 1 mm thick manufactured with high purity (99.9%) vacuum anodized coated aluminum.



Glass: The fixtures contain 4 mm thick and 51 mm high conic shape glass. The decorative glass is available in opal or blue.



Glasses are available as: KC1: White Opal color KC2: Blue



Light Report

Light Data

Catalogue Pages

Code Lamp Cut-Out (mm) Protection Class Weight (gr)
SPG 200/218-KC1Dulux D 18WØ 205 mmIP203.050 gr
SPG 200/226-KC1Dulux D 26WØ 205 mmIP203.450 gr
SPG 200/218-KC2Dulux D 18WØ 205 mmIP203.050 gr
SPG 200/226-KC2Dulux D 26WØ 205 mmIP203.450 gr
