LITPA's surface-mounted fixtures provide comfort aesthetically with their technological design and optimized efficiency. PSS Series luminaires offer alternatives with their one-piece design answering to all lighting needs when fitted with our range of diffusers and reflectors.

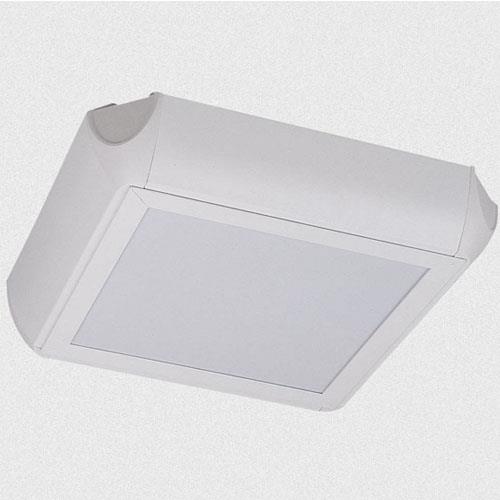

PSS Series are surface-mounted compact fluorescent fixtures.



Fixture Housing: The fixture housings are made of 1 mm thick high quality sheet steel and painted with minimum 50 microns thick electrostatic powder paint. The lamp sockets have phosphorus-bronze contacts and wide rotor surfaces. The sockets have a locking mechanism and are resistant to temperatures up to 150°C. Low energy-loss magnetic or electronic ballasts are used. The fixtures can be fitted with different diffusers and reflectors to meet different mechanical requirements and also to achieve different lighting effects.



Opal Diffuser (OP): 3 mm thick opal acrylic diffuser. The diffusers are manufactured of acrylic and do not change the color by the time. In case of a fire, acrylic diffusers do not increase flammability.



Installation

Catalogue Pages

Code Lamp Protection Class Weight (gr)
PSS/2*11-OPDulux S 11WIP202.450 gr
PSS/3*11-OPDulux S 11WIP203.250 gr
PSS/2*18-OPDulux L 18WIP202.800 gr
PSS/3*18-OPDulux L 18WIP203.600 gr
