PSS-DP1


PSS-DP1

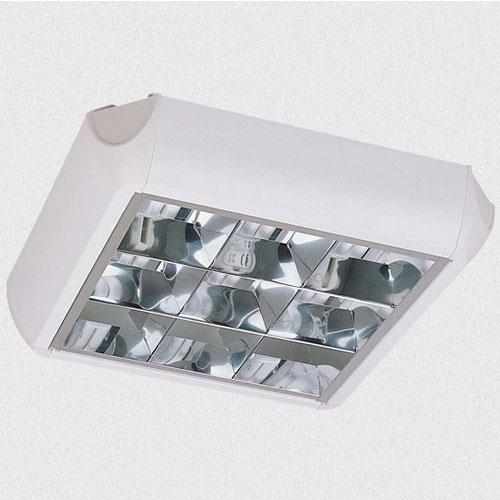

A new design that emphasizes texture, PSS Series Surface-Mounted Fixtures combine high standards and modern design. They provide illumination without any glare and with various reflector types, such as parabolic, opal or acrylic.



PSS Series are surface-mounted compact fluorescent fixtures.



Fixture Housing: The fixture housings are made of 1 mm thick high quality sheet steel and painted with minumum 50 microns thick electrostatic powder paint. The lamp sockets have phosphorus-bronze contacts and wide rotor surfaces. The sockets have a locking mechanism and are resistant to temperatures up to 150°C. Low energy-loss magnetic or electronic ballasts are used. The fixtures can be fitted with different diffusers and reflectors to meet different mechanical requirements and also to achieve different lighting effects.



Double Parabolic Bright Louvre (DP1): The reflectors are made of (99.9%) high purity anodised bright aluminum with double parabolic.



Installation

Light Report

Catalogue Pages

Code Lamp Protection Class Weight (gr)
PSS/2*11-DP1Dulux S 11WIP202.350 gr
PSS/3*11-DP1Dulux S 11WIP203.150 gr
PSS/2*18-DP1Dulux L 18WIP202.600 gr
PSS/3*18-DP1Dulux L 18WIP203.400 gr
