PLUTON-M1671

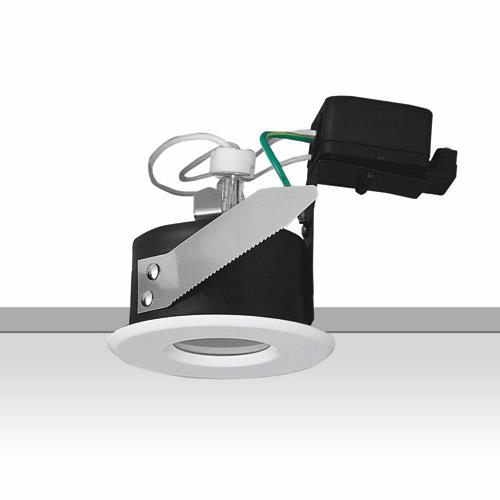

Pluton-M1671

Pluton fixtures combined with suspended ceilings are completely resistant to dust and pressurized water from below although they are in the IP 54 protection class when bare. These units can be used in applications that require decorative and aesthetic qualities even when humidity, dust and contamination are unavoidable. They are recommended for bathrooms, eaves and balconies. The sand tempered glass distributes the light beam evenly to create a more comfortable setting.



Body: The body and front frames are 0.6 mm sheet steel. The pods for connection of the fixture to the suspended ceiling are 1 mm sheet steel and the inner and outer-mounting-springs are manufactured with 0.6 mm and 0.4 mm stainless steel respectively.



Glass: 51 mm in diameter and 3 mm thick sanded edge completely tempered glass is used to prevent damage and danger in case of breaking.



Sealing: 2 mm thick elastic gasket is placed between the front frame and the suspended ceiling to ensure resistance to leakage.



Catalogue Pages

Code Lamp Cut-Out (mm) Protection Class Weight (gr)
M 1671QT 12V 20-50WØ70 mmIP65250 gr
