PGS 300/DP1


PGS 300/DP1

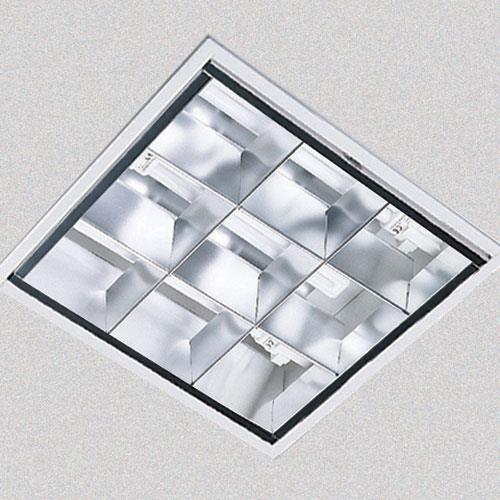

As suspended ceilings and panel ceilings become part of modern architecture, the lighting industry has been developing fixtures to suit these ceilings. L?TPA's suspended ceiling fixtures are designed to provide creative lighting solutions which are efficient and at the same time easily accessible for service. Fixtures have been designed in different sizes and assembly styles for different ceiling types.



Fixture Housings: PGS fixture series are manufactured of 0.6 mm thick high quality steel. The housings are painted with 50 microns electrostatic paint. In order to maximise the efficiency of light and prevent non-symmetry double sockets have been used for each bulb. The imported fixture sockets used have phosphorus-bronze fuses with locking mechanisms. In order to minimise energy loss, magnetic or electronic ballasts with low energy loss are used. A special mounting spring is used to enable strong mounting of reflectors onto the fixture and also simplify the changing of the bulb. These springs have been designed to allow easy assembly and do not damage the reflector. They also ensure that the reflector fits the housing property.



PGS 300 Series are manufactured as Compact Fluorescent - Suspended Ceiling Fixtures.



Double Parabolic Bright Louvre (DP1): Manufactured of (99.9% ) high purity bright aluminum with double parabolic.



Areas of Use: Private offices, computer facilities, conference rooms, management and prestige offices, classrooms, shopping centers and similar indoor applications.



Light Report

Light Data

Catalogue Pages

Code Lamp Cut-Out (mm) Protection Class Weight (gr)
PGS 300/2*11-DP1Dulux S 11W275*275 mmIP202.600 gr
PGS 300/2*18-DP1Dulux L 18W275*275 mmIP202.600 gr
PGS 300/3*11-DP1Dulux S 11W275*275 mmIP203.100 gr
PGS 300/3*18-DP1Dulux L 18W275*275 mmIP203.100 gr
