PEG-DR


PEG-DR

The unique illumination characteristics and optical features of Luna model offers ideal solutions for applications that require a comfortably illuminated atmosphere. Indirect illumination units are recommended for applications that need a pleasantly illuminated atmosphere like conference and meeting rooms, offices, hotel lobbies and museums.

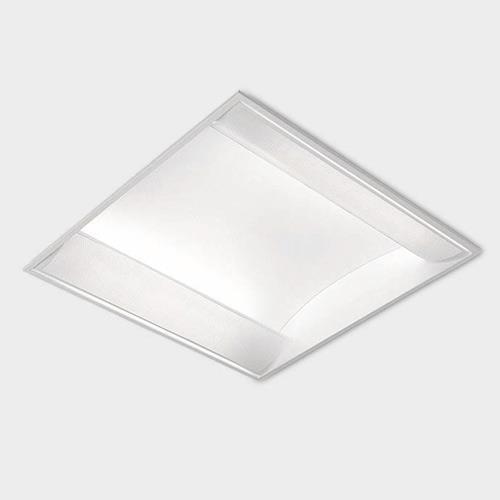

Luna model double reflector (DR) fixtures house the lamps on each side of the reflector concealed under the cover to reflect the light on the wide base reflector. This base reflector ensures a pleasant and uniform luminance and creates an attractive appearance on the ceiling. Depending on the ambiance of choice, regular or perforated cover can be used. Perforated cover allows the light to diffuse on the ceiling and the walls to prevent complete darkness on the ceiling and minimize its contrast with the walls.



Body: 0.6 mm thick, 6114, A1 quality DKP sheet steel is used in manufacturing. The body is coated with 60-80 microns thick epoxy polyester electrostatic powder paint. (Standart color RAL 9016)



Reflector: The reflectors in the fixtures are made of 0.4 mm thick 99.9% purity Tannenbaum aluminum. This specially extruded aluminum has a unique shape to ensure controlled distribution of the light beams.



Perforated Cover (P): The perforated cover used in Luna line fixtures are made of 0.6 mm thick DKP sheet steel. There are 1.5 mm diameter holes on the surface of this material to screen the light and create a decorative appearance. The inner part of the perforated cover contains highly light permeable opal flaxylens (American-SPL) to conceal the lamp, prevent glare and diffuse the light.



Regular Cover (D): 0.6 mm thick 6114, A1 quality DKP sheet steel is used in the manufacturing.



PEG-DR: for Modular or Plaster ceilings. PEG-DR 002 : for Metal ceilings.



Light Report

Light Data

Catalogue Pages

Code Lamp Cut-Out (mm) Protection Class Weight (gr)
PEG-DR 236DDulux L 36W575*575 mmIP207.450 gr
PEG-DR 236PDulux L 36W575*575 mmIP207.450 gr
PEG-DR 255DDulux L 55W575*575 mmIP207.450 gr
PEG-DR 255PDulux L 55W575*575 mmIP207.450 gr
PEG-DR 002/236DDulux L 36WClip-in TypeIP207.450 gr
PEG-DR 002/236PDulux L 36WClip-in TypeIP207.450 gr
PEG-DR 002/255DDulux L 55WClip-in TypeIP207.450 gr
PEG-DR 002/255PDulux L 55WClip-in TypeIP207.450 gr
