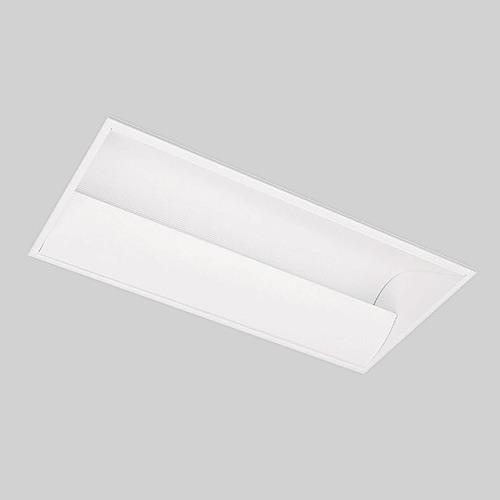

Luna model PAG fixtures are specially developed for lighting of shelves in shops, boards in schools, walls and paintings in offices and writing boards in meeting rooms. The unique form of the base reflector directs the light to obtain asymmetric luminance. The asymmetric wall-washer creates a uniform luminance at the vertical axis to eliminate the risk of glare. The lamp is concealed under the cover, as in the case for all the indirect model and the light reflects from the base reflector. The cover may be dismantled for replacing or maintaining the lamps.
Body: 0.6 mm thick, 6114, A1 quality DKP sheet steel is used in manufacturing. The body is coated with 60-80 microns thick epoxy polyester electrostatic powder dye. (Standart color RAL 9016)
Reflector: The reflectors in the fixtures are made of 0.4 mm thick (99.9% ) high purity Tannenbaum aluminum. This specially extruded aluminum has a unique shape to ensure controlled distribution of the light beams.
Regular Cover: 0.6 mm thick 6114, A1 quality DKP sheet steel is used in the manufacturing.
