LYS 100


LYS 100

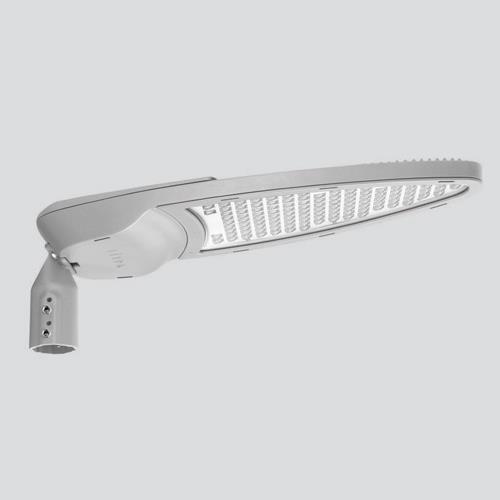

Streetray is a highly efficient IP66 protection class road lighting fixture which using LED technology.Our fixtures are produced in three different types as Mini, the Midi and Maxi. In this way, they can be utilized in a wide range from 2.080 lumens to 41.800 lumens.

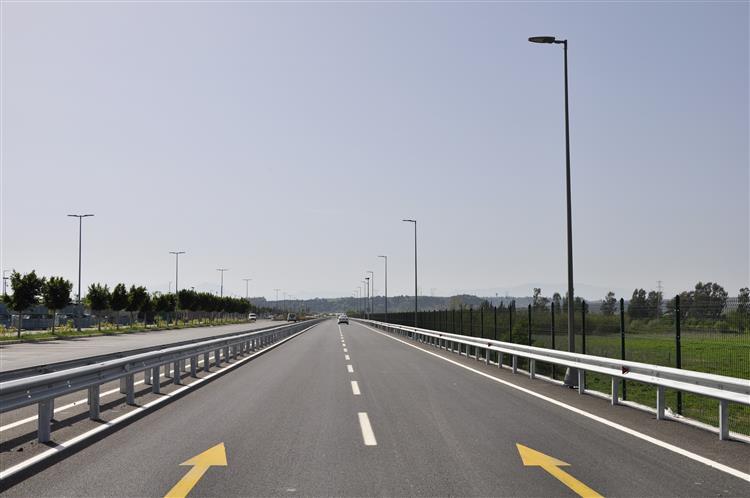

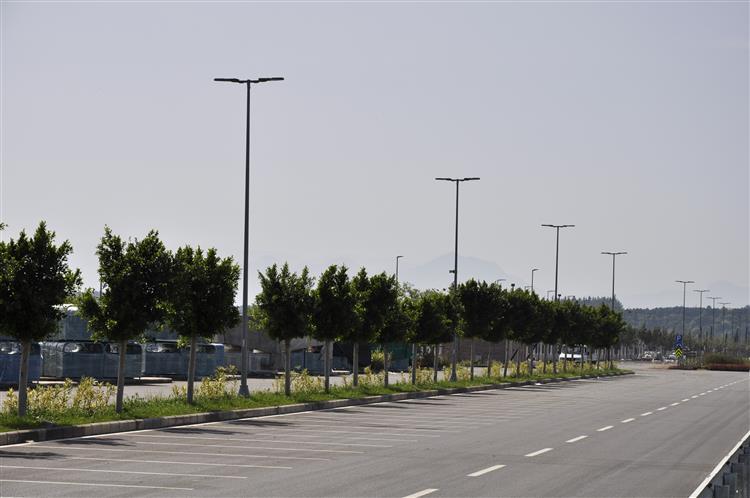

STREETRAY road fixtures can be used in all areas of road lighting including M1 motorways, urban street lighting and lighting of alleys. Its monolithic integrally cooled die-cast aluminum body structure extends the life of light source and reduces maintenance costs. Streetray also offers many features such as angle adjustable mounting bracket, channel water management and bird repeller which can optionally be installed. The fixture’s body is designed to be suitable for all kinds of urban automation. Automation systems which can be used in Wi-Fi, Zigbee, RF, PLC, Dali, KNX systems are also available upon request.


Body: Injected aluminium

LED: High Efficient Power Led

Reflector: Furukawa MC PET

Glass: 5 mm thick and tempered, ground with serigraphic printing


Montaj Talimatı

Light Data

Catalogue Page

Code Led Luminous Flux (lm) System Power (W) Protection Class Weight (gr)
LYS 100/170High Efficiency Power LEDs21.000170IP6615.200
LYS 100/200High Efficiency Power LEDs26,000200IP6615.200
LYS 100/250High Efficiency Power LEDs30.720250IP6615.200
LYS 100/300High Efficiency Power LEDs35.690300IP6615.200
