LSS


LSS

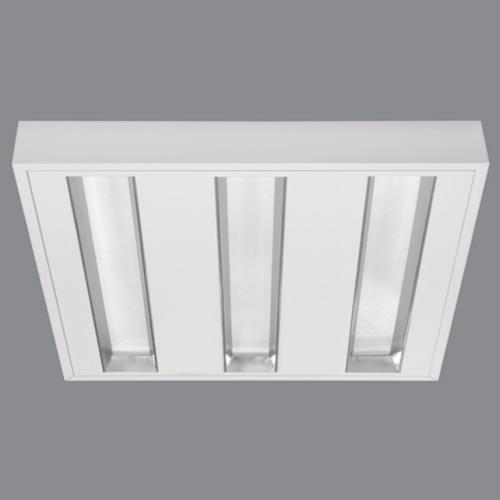

LSS luminaires, which are a surface mounted model of luminaire, are presented asa complete solution in the places such as offices and etc. in order to remove the problems of glare. It increases the productivity to the top level for the employees by increasing light quality in the work environment. They are produced with 2, 3 and four-lamelle according to the amount of the light requested. Thanks to high quality materials used, extremely high performance and savings are provided.


Body : 6114, A1 Quality DKP sheet

Diffuser: 3mm thick, 92% transparent, 65° light beam angle

LED : Osram Duris E5 or Nichia 757D




Inner Reflector: Alanod Miro 27 aluminum reflector

Outer Reflector:
(Cat1): Alanod Miro 27/4270AG aluminum reflector
(Cat2): Alanod Miro 20/2000AG aluminum reflector


Light Data

Catalogue Pages

Code Led Luminous Flux (lm) System Power (W) Protection Class Weight (gr)
LSS60-60/3High Efficient Mid-Power LED2.34427IP205.500
LSS60-60/4High Efficient Mid-Power LED3.00035IP205.700
LSS30-30/2High Efficient Mid-Power LED2.35018IP202.800
LSS30-120/2High Efficient Mid-Power LED2.20027IP205.800
