LBS


LBS

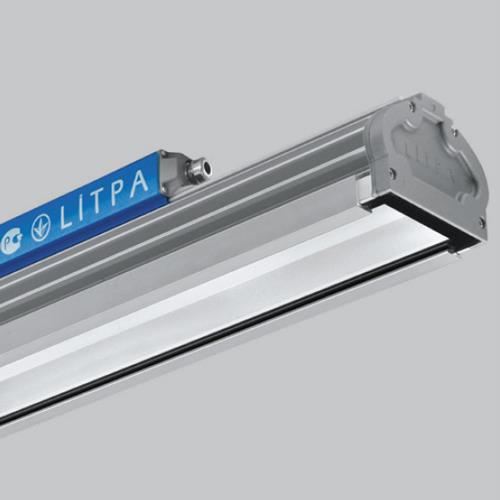

ENDILED fixtures are high protection class aluminum bodied fixtures produced with extremely high technology. They are suitable for use in many areas of industry, such as production areas, storage areas and particularly in high-ceilinged places. Reflectors produced with 98% optical efficiency by Alanod Miro-Silver technology are used in fixtures in order to ensure high efficiency in all types. Heating problems are completely solved thanks to the aluminum body and PCB with high thermal conductivity aluminum.


Body:  Aluminum extrusion body and aluminum injection end caps.

Reflector: Alanod Miro-Silver 4

Diffuser: Tempered glass or film laminated shatterproof tempered glass

Led Type: High efficient Mid-Power LED


Installation

Light Data

Catalogue Pages

Code Led Luminous Flux (lm) System Power (W) Protection Class Weight (gr)
LBS 6High Efficient Mid-Power LED6.80046IP664.000
LBS 9High Efficient Mid-Power LED9.60068IP664.000
LBS 12High Efficient Mid-Power LED11.60078IP667.800
LBS 20High Efficient Mid-Power LED20.000140IP667.800
