KGS/DP


KGS/DP

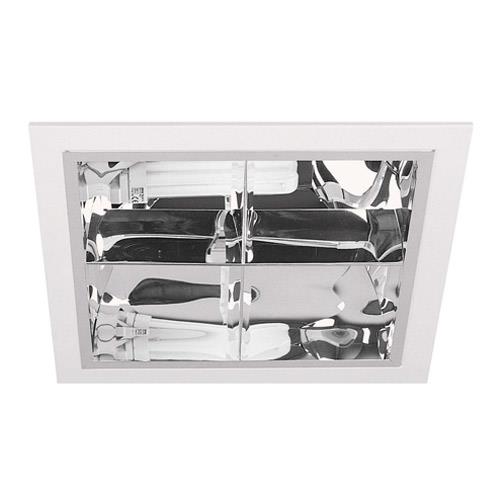

The Mars model is created to offer decorative diversity to illumination with its small square design, efficiency and wide range of accessories. DP-Double parabolic aluminum reflector fixturesare offered for general application purposes in this model. The aesthetic and efficiency qualities of aluminum are contained in a small and elegant look.



Body: The fixture body is manufactured with 6114, A1 quality 0.6 mm thick DKP sheet steel material. The body is painted with 80 microns epoxy polyester electrostatic powder paint.



Reflectors: The special form of 0.4 mm thick 99.9% purity anodized aluminum reflectors offer high efficiency. Double parabolic lamellas produced with the same material are placed in front of the reflectors to minimize glare.



Reflector Type: DP1: MIRO 4 bright aluminum. DP2: MIRO 5 matt aluminum.



Light Report

Light Data

Catalogue Pages

Code Lamp Cut-Out (mm) Protection Class Weight (gr)
KGS 218/DP1Dulux D 18W265*265 mmIP203.200 gr
KGS 218/DP2Dulux D 18W265*265 mmIP203.200 gr
KGS 218/DP2Dulux D 18W265*265 mmIP203.200 gr
KGS 226/DP2Dulux D 26W265*265 mmIP203.600 gr
