KGM/SC


KGM/SC

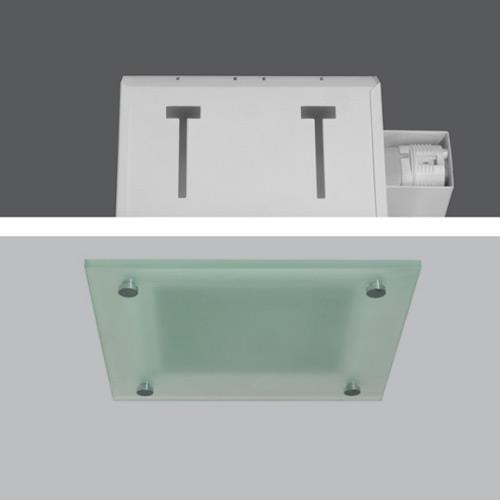

Body: The fixture body is manufactured with 6114, A1 quality 0.6 mm thick DKP steel sheet material. The body is painted with 80 micron epoxy polyester electrostatic powder paint.



Reflector: The special form of 0.4 mm thick (99.9%) purity anodized aluminum reflectors offer high efficiency.



Diffuser: 8 mm thick tempered.



Catalogue Pages

Code Lamp Cut-Out (mm) Protection Class Weight (gr)
KGM/218/SC2x18W Dulux D175x175 mmIP203.000 gr
KGM/226/SC2x26W Dulux D175x175 mmIP203.600 gr
