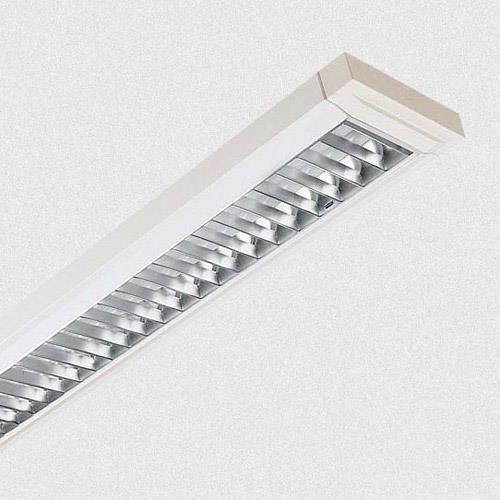

FSD-DP2


FSD-DP2

The LETO Series Surface Mounted or Pendant fixtures do not just fill space, they are also integrated with the architecture and become a part of it. This minimalist design provides proper and effective lighting. They offer the best lighting solution and can be easily installed on a straight line or in other different shapes, as well as offering direct or indirect body choices.



Fixture Housing: The fixture housings are made of 1 mm thick high quality sheet steel and coated with minimum 50 microns thick electrostatic powder paint. The lamp sockets have phosphorus-bronze contacts and wide rotor surfaces. The sockets have a locking mechanism and are resistant to temperatures up to 150°C. Low energy-loss magnetic or electronic ballasts are used. The fixtures can be fitted with different diffusers and reflectors to meet different mechanical requirements and also to achieve different lighting effects.



Double Parabolic Matt Louvre (DP2): The reflectors are made of high purity (99.9%) matt anodised aluminum with double parabolic.



Installation

Catalogue Pages

Code Lamp Protection Class Weight (gr)
FSD/1*18-DP2L 18WIP203.100 gr
FSD/1*36-DP2L 36WIP205.300 gr
FSD/2*18-DP2L 18WIP203.200 gr
FSD/2*36-DP2L 36WIP206.000 gr
