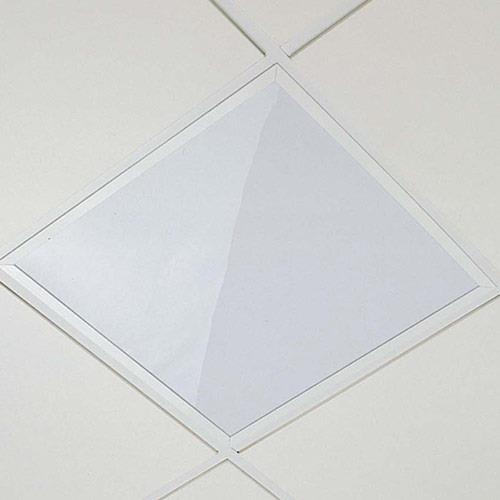

FGS 300/OP


FGS 300/OP

As suspended ceilings and panel ceilings become a part of modern architecture, the lighting industry has been developing fixtures to suit these ceilings.LITPA's suspended ceiling fixtures are designed to provide creative lighting solutions which are efficient and at the same time easily accessible for service. Fixtures are designed in different sizes and assembly styles for different ceiling types.



Fixture Housings: FGS fixture series are manufactured of 0.6 mm thick high quality steel. The housings are coated with 50 microns electrostatic paint. In order to maximise the efficiency of light and prevent non-symmetry double sockets are used for each bulb. The imported fixture sockets used have phosphorus-bronze fuses with locking mechanisms. In order to minimise energy loss, magnetic or electronic ballasts with low energy loss are used. A special mounting spring is used to enable strong mounting of reflectors onto the fixture and also simplify the changing of the bulb. These springs are designed to allow easy assembly and do not damage the reflector. They also ensure that the reflector fits the housing property.



FGS 300 Series are manufactured for Moduler Ceiling type.



Opal Diffuser (OP): 3 mm thick opal acrylic diffuser.



Areas of Use: Hospitals, examination rooms, hospital corridors, surgeries, laboratories and kitchens.



Catalogue Pages

Code Lamp Cut-Out (mm) Protection Class Weight (gr)
FGS 300/4*18-OP White L 18W580*580 mmIP20-IP43 (Optional)5.500 gr
FGS 300/1*18-OP White L 18W280*580 mmIP20-IP43 (Optional)4.000 gr
FGS 300/1*36-OP White L 36W280*1183 mmIP20-IP43 (Optional)6.000 gr
FGS 300/2*18-OP White L 18W280*580 mmIP20-IP43 (Optional)4.100 gr
FGS 300/2*36-OP White L 36W280*1183 mmIP20-IP43 (Optional)6.500 gr
FGS 300/4*18-OP White L 18W580*580 mmIP20-IP43 (Optional)11.000 gr
FGS 300/4*36-OP White L 36W580*1183 mmIP20-IP43 (Optional)11.000 gr
