E-CMH/E-MMH/E-NMH /S


E-CMH/E-MMH/E-NMH /S

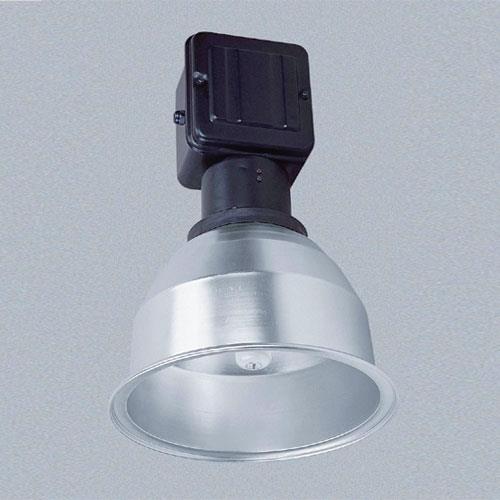

Manufactured out of 1.5 mm high quality steel, these fixtures are of IP65 protection class. There are silicon gaskets between the housing and the cover, as well as between the housing and the reflector. The electrical elements are mounted on a galvanized plate making assembly and disassembly very simple. Inside the fixture porcelain sockets with phosphorus-bronze contacts have been used. Low energy loss, high performance ballasts maximise lamp efficiency. These fixtures can be mounted on all ceiling surfaces with special support elements and mounting tracks.



Available with Mercury Vapour Lamp (E-CMH), Sodium Vapour Lamp (E-NMH) or Metal Halide Lamp (E-MMH).



Standart Reflectors (S): High purity aluminum is used in the production of these reflectors, which are ideal for heights of 6 - 8 meters. These reflectors can be used with all high bay fixtures, and can also be fitted with glass and grille.



Glass and Grille: Glass fittings are made of 5 mm tempered glass and have silicone gaskets. Thus they are waterproof. They are fitted onto glass housing with stainless steel hinges. They are resistant to impact. Grilles can also be fitted to increase durability.



Light Data

Catalogue Pages

Code Lamp Protection Class Weight (gr)
E-CMH 250W/S1x250W HQLIP657.500 gr
E-CMH 400W/S1x400W HQLIP658.600 gr
E-NMH 250W/S1x250 NAV-EIP658.800 gr
E-NMH 400W/S1x400 NAV-EIP6510.000 gr
E-MMH 250/S1x250 HQI-EIP657.650 gr
E-MMH 400W/S1x400 HQI-EIP658.800 gr
Reflector(S)3.800 gr(5Pcs)
Glass5.000 gr(5Pcs)
Grille15.500 gr(50Pcs)
