E-CMH/E-MMH/E-NMH /G


 E-CMH/E-MMH/E-NMH /G

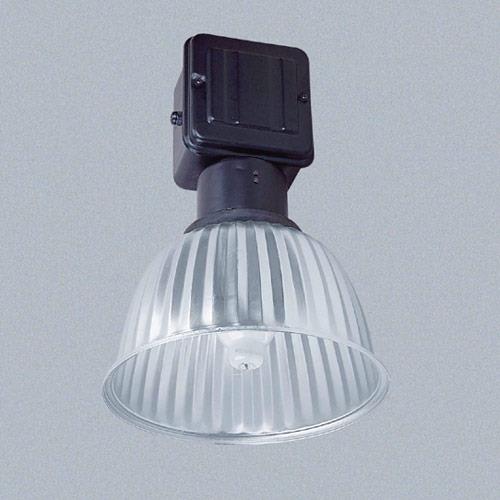

Manufactured out of 1.5-mm high quality steel, these fixtures are in the IP 65 protection class. There are silicone gaskets between the housing and the cover, as well as between the housing and the reflector. The electrical elements are mounted on a galvanized plate, making assembly and disassembly very simple. Inside the fixture, porcelain sockets with phosphorus-bronze contacts have been used. Low energy loss, high performance ballasts maximize lamp efficiency. These fixtures can be mounted on all ceiling surfaces with special support elements and mounting tracks.



Available with Mercury Vapour Lamp (E-CMH), Sodium Vapour Lamp (E-NMH) or Metal Halide Lamp (E-MMH).



Wide Angle Reflectors (G): These reflectors are also manufactured of high purity aluminum. They are suitable for lower ceilings which are 4.5 - 7 m high with their special design. These reflectors which can be used with all high bay fixtures, can also be fitted with glass and grille.



Glass and Grille: Glass fittings are made of 5 mm tempered glass and have silicone gaskets. Thus they are waterproof. They are fitted onto glass housing with stainless steel hinges. They are resistant to impact. Grilles can also be fitted to increase durability.



Light Report

Light Data

Catalogue Pages

Code Lamp Protection Class Weight (gr)
E-CMH 250/G1x250W HQLIP657.500 gr
E-CMH 400/G1x400W HQLIP658.600 gr
E-NMH 250/G1x250W NAV-EIP658.800 gr
E-NMH 400/G1x400W NAV-EIP6510.000 gr
E-MMH 250/G1x250W HQI-EIP657.650 gr
E-MMH 400/G1x400W HQI-EIP658.800 gr
Cam6.300 gr(10 Adet)
Izgara15.500 gr(50 Adet)
