CMH-MMH-NMH /S


CMH-MMH-NMH /S

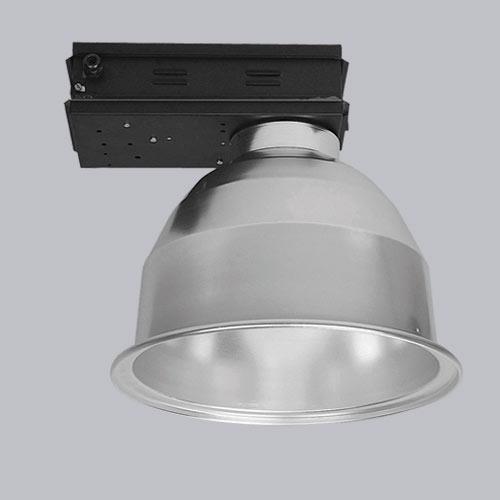

Manufactured out of 1 mm high quality steel, these fixtures are in the IP 20 protection class. Inside the fixture, porcelain sockets with phosphorus-bronze contacts have been used. Low energy loss, high performance ballasts maximize lamp efficiency. Special mounting tracks are used to mount these fittings onto ceilings.



Available with Mercury Vapour Lamp (CMH), Sodium Vapour Lamp (NMH) or Metal Halide Lamp (MMH).



Standart Reflectors (S): High purity aluminum is used in the production of these reflectors, which are ideal for heights of 6 - 8 meters. These reflectors can be used with all high bay fixtures, and can also be fitted with glass and grille.



Glass and Grille: Glass fittings are made of 5 mm tempered glass and have silicone gaskets. Thus they are waterproof. They are fitted onto glass housing with stainless steel hinges. They are resistant to impact. Grilles can also be fitted to increase durability.



Catalogue Pages

Light Report

Code Lamp Protection Class Weight (gr)
CMH 250/S1x250W HQLIP205.400 gr
CMH 400/S1x400W HQLIP206.750 gr
NMH 250/S1x250W NAV-EIP206.600 gr
NMH 400/S1x400W NAV-EIP207.950 gr
MMH 250/S1x250W HQI-EIP205.750 gr
MMH 400/S1x400W HQI-EIP207.050
Reflektör(S)3.800 gr(5adet)
Cam5.000 gr(5adet)
Izgara15.500 gr(50adet)
