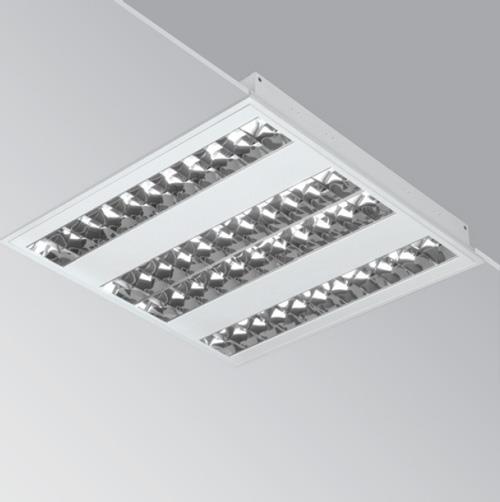

Four reflectors are grouped in single, double and single lamp in this model R121; perforated and regular excluding the reflector surface.
Body: The body is manufactured with 6114, A1 quality DKP sheet steel and coated with 80 microns thick epoxy polyester electrostatic powder paint. FH lamps housed in the fixtures operate with electronic ballast only. Regulus model fixtures are manufactured to fit all types of suspended ceiling systems. Fixtures for plaster, modular and gypsum suspended ceiling, modular metal and metal ceiling are available in the standard product range. Specifically for the metal ceilings, the fixtures are manufactured to perfectly comply with the particular suspended ceiling to ensure extremely good results both in terms of appearance and mounting.
Reflector: The Regulus model fixture reflectors are manufactured with 0.4 mm thick high purity (99.9%) MIRO aluminum to ensure maximum efficiency and prevent probable light discoloration. The side wings of the reflectors are properly curved to increase efficiency and orient the light beams. The lamellas are in double parabolic form.
Front Covers: Thanks to the ultra-slimness of the lamp, the reflector size is decreased to leave an empty space on the surface of the fixture. This surface in Regulus fixtures may be regular or coated with perforated material to obtain an aesthetic luminescence by means of the opaque element. The regular products are coded D and perforated P in our model. The front surface is manufactured with the same material in both types, but the perforated version contains 1.5 mm holes. To prevent the inside of the fixture from showing in the perforated version, 0.5 mm thick highly light permeable opal flexylens (SPL) board is placed behind the perforation.
TGS 300 : for Modular or Gypsum ceilings. TGS 002 : for Metal ceilings.
