LYS 20


LYS 20

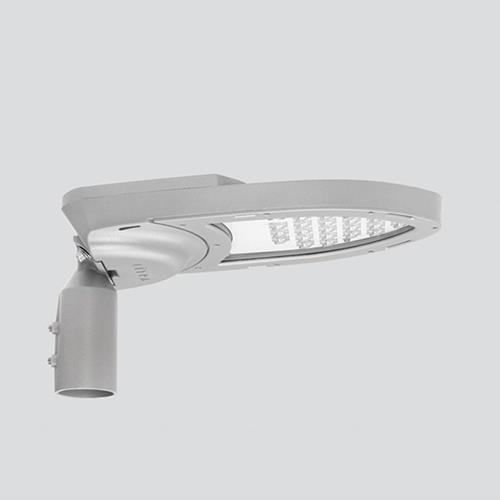

Streetray is a highly efficient IP66 protection class road lighting fixture which using LED technology.Our fixtures are produced in three different types as Mini, the Midi and Maxi. In this way, they can be utilized in a wide range from 2.080 lumens to 41.800 lumens.

STREETRAY road fixtures can be used in all areas of road lighting including M1 motorways, urban street lighting and lighting of alleys. Its monolithic integrally cooled die-cast aluminum body structure extends the life of light source and reduces maintenance costs. Streetray also offers many features such as angle adjustable mounting bracket, channel water management and bird repeller which can optionally be installed. The fixture’s body is designed to be suitable for all kinds of urban automation. Automation systems which can be used in Wi-Fi, Zigbee, RF, PLC, Dali, KNX systems are also available upon request.


Body: Aluminum injection

LED: High Efficient Power Led

Glass: 5 mm thick and tempered, ground with serigraphic printing


Installation

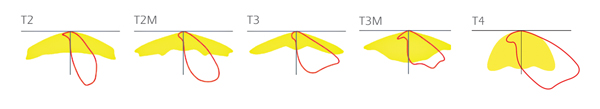

Light Data

Catalogue Pages

Code Led Luminous Flux (lm) System Power (W) Protection Class Weight (gr)
LYS 20/55High Efficiency Power LED6.10055IP665.700
LYS 20/67High Efficiency Power LEDs7.30067IP665.700
LYS 20/45High Efficiency Power LEDs5.20045IP665.700
LYS 20/72High Efficiency Power LEDs7.50072 IP665.700
