TSS/R1111


TSS/R1111

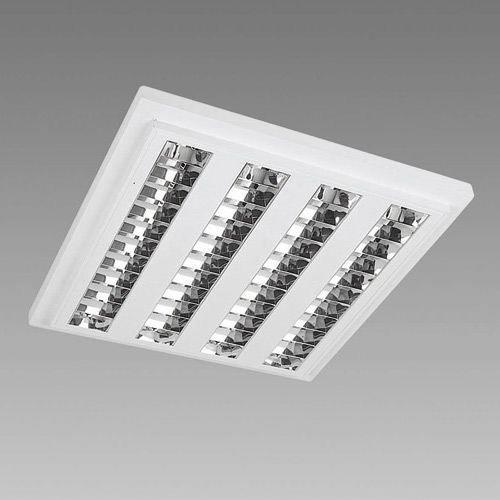

The slim, elegant and efficient Polaris fixtures combine the best of the aesthetic and technological advantages presented by state-of-the-art FH and FQ lamps. The contemporary and practical body, coupled with reflectors that create comfortable illumination with perfect efficiency, provide an impressive choice for surface-mounted fixtures, a challenge that designers are frequently faced with.



Body: The body frame is manufactured with 2 mm thick aluminum profile. The fixture base is made of 6114, A1 quality DKP sheet steel and coated with 80 microns thick epoxy polyester electrostatic powder paint. Polaris model fixtures contain FH and FQ lamps that operate only with electronic ballast; therefore all the products in this range are manufactured with electronic ballast only.



Reflector: The Polaris model fixture reflectors are manufactured with 0.4 mm thick high purity (99.9%) pu MIRO aluminum to ensure maximum efficiency and prevent probable light discoloration. The side wings of the reflectors are properly curved to increase efficiency and orient the light beams. The lamellas are in double parabolic form.



Front Surface: The front surfaces of ultra-slim Polaris model products are manufactured as regular or perforated. The perforation holes are 1.5 mm wide. To prevent the inside of the fixture from showing and to enhance the decorative appearance in the perforated version, 0.5 mm thick highly light permeable opal flaxylens board is placed behind the perforation.



Separately placed two lamps - R11, three lamps - R111 and four lamps - R1111 types are available. In this model, the surface excluding the reflector is manufactured as regular (D).



Catalogue Pages

Code Lamp Protection Class Weight (gr)
TSS-D/414R1111FH 4x14WIP207.950 gr
