FSS-DP2


FSS-DP2

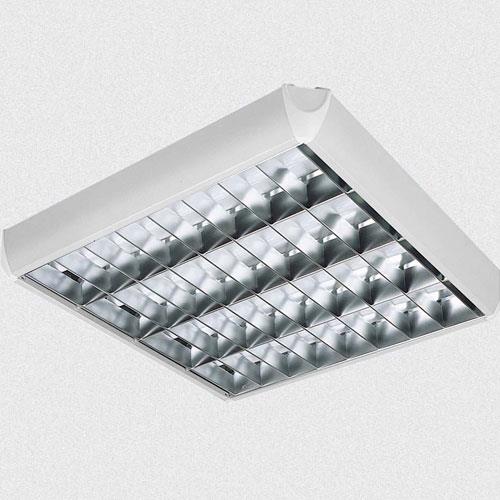

LITPA's surface-mounted fixtures provide comfort aesthetically with their technological design and optimized efficiency. FSS Series luminaires offer alternatives with their one-piece design answering to all lighting needs when fitted with our range of diffusers and reflectors.



Fixture Housing: The fixture housings are made of 1 mm thick high quality sheet steel and coated with minimum 50 microns thick electrostatic powder paint. The lamp sockets have phosphorus-bronze contacts and wide rotor surfaces. The sockets have a locking mechanism and are resistant to temperatures up to 150°C. Low energy-loss magnetic or electronic ballasts are used. The fixtures can be fitted with different diffusers and reflectors to meet different mechanical requirements and also to achieve different lighting effects.



Double Parabolic Matt Louvre (DP2): The reflectors are made of high purity (99.9%) matt anodised aluminum with double parabolic.



Installation

Catalogue Pages

Code Lamp Protection Class Weight (gr)
FSS/2*18-DP2L 18WIP203.600 gr
FSS/2*36-DP2L 36WIP207.000 gr
FSS/4*18-DP2L 18WIP205.900 gr
