FLP-TV/1X


FLP-TV/1x

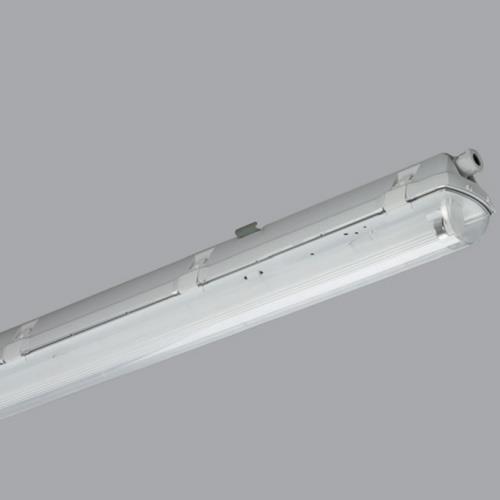

Proof that elegance and technology can be combined… The dream of using waterproof fixtures in decorative surroundings has become a reality. They meet every need with their polycarbonate and acrylic alternatives.



FLP-TV and FLP-AC waterproof fixtures can be attached to each other easily with a connection spring. The body of the fixture is made of Impact-resistant polycarbonate injection. The body is fitted with flush clips to attach the diffuser. There are two clips choices: polyamide with glass fiber and stainless steel. The reflector clicks onto the body through a distance holder made of polyamide. In a high ceiling installation, an additional parabolic aluminum reflector which alters the luminous flux can be attached to the fixture. The diffuser is made of plastic injection with two options: transparent acrylic and transparent polycarbonate.



Diffuser: The diffuser is made of UV stabilized, transparent polycarbonate material.



Reflector: The reflector unit has been painted with white polyester and manufactured of 0.6 mm thick DKP steel sheet. It is clipped onto the housing with locking equipment.



Installation

Light Data

Catalogue Pages

Code Lamp Protection Class Weight (gr)
FLP-TV/1141x14W FHIP661.200 gr
FLP-TV/1281x28W FHIP662.230 gr
FLP-TV/1541x54W FQIP662.230 gr
FLP-TV/1351x35W FHIP662.690 gr
FLP-TV/1181x18W LIP661.250 gr
FLP-TV/1361x36W LIP662.250 gr
FLP-TV/1581x58W LIP662.740 gr
