DH 2005


DH 2005

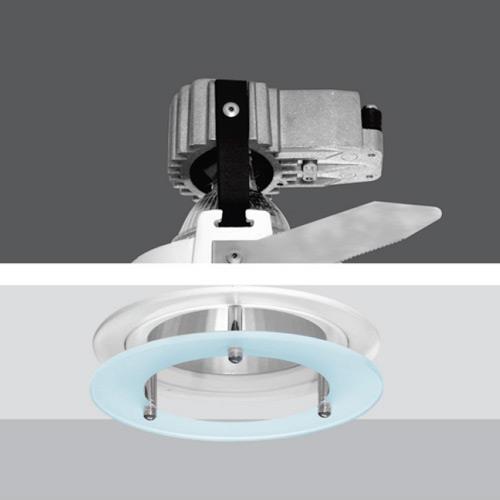

The Galaxy model fitted with low-voltage halogen lamps meets several needs both in terms of visual comfort and design flexibility. The special design of the body improves cooling efficiency to ensure nominal operating temperature for the light source.



Body: The body and frame are aluminum injection designed to enhance the cooling surface. The mounting springs are stainless steel. The body is painted with min. 80 micron powder paint.



Frame: Galaxy model fixture frames are manufactured from injection aluminum. The frames come in white, ome or gold.



Reflector: High purity (99.9 %) aluminum reflector is used. DH 2005 contains a symmetrical reflector.



Glass: 3 mm thick pendant glass.



Light Report

Light Data

Catalogue Pages

Code Lamp Cut-Out (mm) Protection Class Weight (gr)
DH 2005 WhiteQT 12V 20-50WØ93 mmIP20400 gr
DH 2005 CrQT 12V 20-50WØ93 mmIP20400 gr
DH 2005 GoldQT 12V 20-50WØ93 mmIP20400 gr
