DH 2004


DH 2004

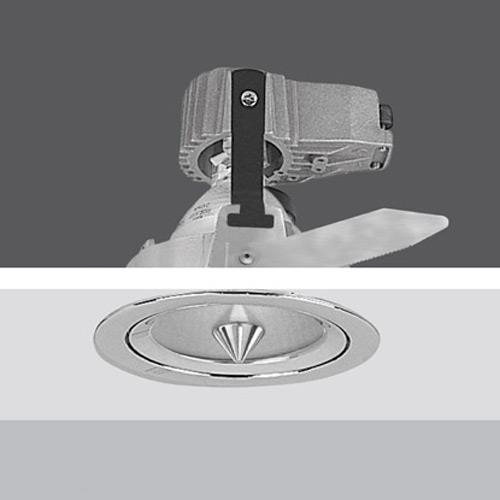

The Galaxy model fitted with low-voltage halogen lamps meets several needs both in terms of visual comfort and design flexibility. The special design of the body improves cooling efficiency to ensure nominal operating temperature for the light source.



Body: The body and frame are aluminum injection designed to enhance the cooling surface. The mounting springs are stainless steel. The body is painted with min. 80 micron powder paint.



Frame: Galaxy model fixture frames are manufactured from injection aluminum. The frames come in white, ome or gold.



Glass: Tempered glass with a diameter of 65 mm diameter and a thickness of 3 mm is used to avoid damage or danger in case of accidents.



Light Report

Catalogue Pages

Code Lamp Cut-Out (mm) Protection Class Weight (gr)
DH 2004 WhiteQT 12V 20-50WØ93 mmIP44400 gr
DH 2004 CrQT 12V 20-50WØ93 mmIP44400 gr
DH 2004 GoldQT 12V 20-50WØ93 mmIP44400 gr
